Custom Nozzle Designs for Unique Screws
In the world of industrial automation, precision and efficiency are paramount. One of the most critical components in automated screwdriving and fastening systems is the nozzle—the interface between the tool and the fastener. While standard nozzles work well for common screw types, unique or specialized screws demand custom nozzle designs to ensure optimal performance, reduce downtime, and prevent damage to both the fastener and the product.
Unique screws, such as those with unusual head designs, security features, or non-standard materials, present a significant challenge for automation. A standard nozzle may not provide the necessary grip, alignment, or torque transmission, leading to misdrives, stripped heads, or machine jams. This is where custom nozzle designs become essential. By tailoring the nozzle to the exact specifications of the screw, manufacturers can achieve a seamless and reliable fastening process.
The process of developing a custom nozzle begins with a thorough analysis of the screw’s geometry. Engineers examine the head type, drive style, diameter, pitch, and overall length. Factors such as the presence of wings, knurls, or other anti-tamper features are also considered. Using advanced CAD software, a precise 3D model of the nozzle is created, ensuring a perfect fit and maximum surface contact with the screw head.
Material selection is another crucial aspect. Depending on the application, nozzles may be manufactured from hardened steel, durable plastics, or non-marring polymers to prevent damage to sensitive components. For high-volume production, wear resistance is a key consideration to extend the nozzle’s lifespan and maintain consistency over thousands of cycles.
Beyond fit and material, custom nozzles can incorporate innovative features to enhance functionality. Magnetic tips can be added to retain screws during positioning, while vacuum-assisted designs are ideal for handling small or non-magnetic fasteners. For delicate applications, spring-loaded or compliant nozzles can compensate for slight misalignments, reducing the risk of error and improving overall system reliability.
Investing in custom nozzle designs offers substantial long-term benefits. It minimizes production interruptions caused by faulty fastening, reduces scrap rates, and enhances the quality of the final assembly. Moreover, it allows manufacturers to leverage the full potential of their automation equipment, adapting to new and unique fastening challenges without compromising speed or accuracy.
As products continue to evolve with more sophisticated designs and materials, the demand for specialized fastening solutions will only grow. Embracing custom nozzle design is not just a technical necessity—it is a strategic advantage that ensures precision, efficiency, and competitiveness in the modern industrial landscape.
| Product Name | Applicable industries |

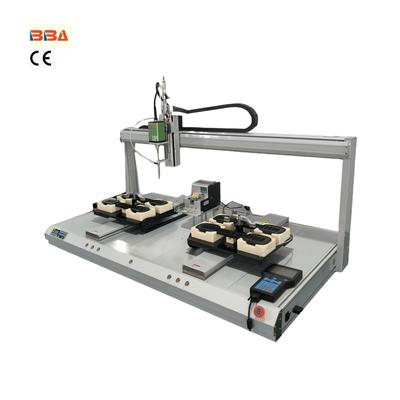

| CNC Screw Fastener | Smart Wearables Production |
